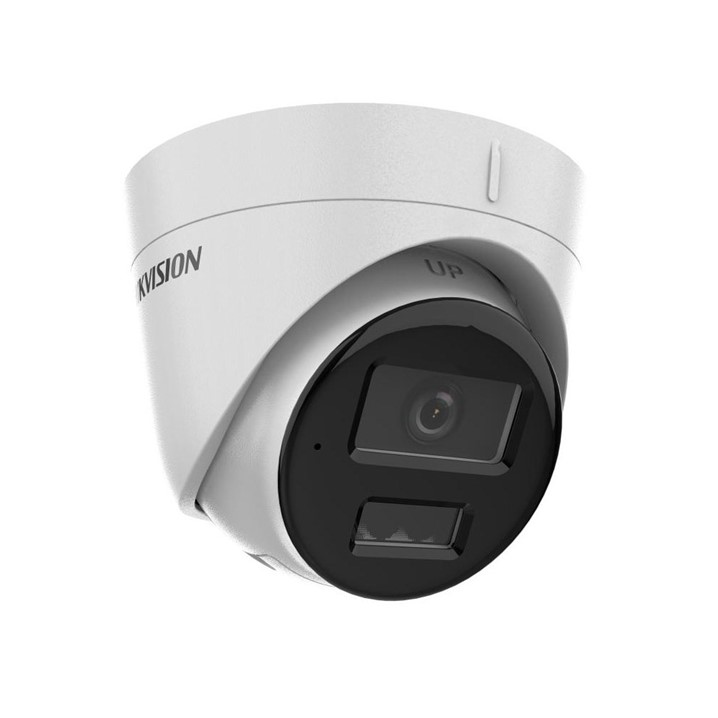

Hikvision DS-2CD1323G2-LIU (2.8mm) Network Camera

Key Features:

• Image Sensor: 2 MP high-performance CMOS sensor
• Lens: Fixed lens, 2.8mm, providing a wide field of view
• Resolution: Up to 1920 × 1080 resolution at 30 frames per second (fps)
• IR Range: Up to 30 meters IR range for night vision, ensuring clear images even in complete darkness
• WDR (Wide Dynamic Range): 120dB WDR technology for handling various lighting conditions and ensuring balanced exposure
• Compression: Efficient H.265+/H.265/H.264+/H.264 video compression, optimizing storage space without compromising image quality
• Smart Features: Equipped with intelligent detection features like motion detection, line crossing detection, and intrusion detection
• Audio: Built-in microphone for audio recording
• Waterproof and Dustproof: IP67-rated, ensuring the camera is suitable for both indoor and outdoor use
• Power: Supports Power over Ethernet (PoE) for easy installation and reduced cabling

Technical Specifications:

• Camera:
  • Image Sensor: 1/2.8″ Progressive Scan CMOS
  • Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Lens: 2.8mm fixed lens
  • Lens Mount: M12
  • Field of View: Horizontal: 106°, Vertical: 57°, Diagonal: 127°
  • Day & Night: IR cut filter with auto switch
• Image:
  • Max. Resolution: 1920 × 1080
  • Frame Rate: 50Hz: 25fps (1920 × 1080), 60Hz: 30fps (1920 × 1080)
  • Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
  • BLC (Backlight Compensation): Yes, zone configurable
  • WDR: 120dB
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub Stream: H.265/H.264/MJPEG
  • Bit Rate: 32 Kbps to 8 Mbps
• Network:
  • Network Storage: NAS (NFS, SMB/CIFS), ANR
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • Security: Password protection, watermark, IP address filtering, anonymous access
• Interface:
  • Communication Interface: 1 RJ45 10M/100M Ethernet port
  • On-board Storage: Built-in microSD/SDHC/SDXC slot, up to 256GB
  • Audio: Built-in microphone
• General:
  • Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)
  • Power Consumption: 12 VDC, 0.5A, max. 6W; PoE: (802.3af, 36V to 57V), 0.2A to 0.1A, max. 7W
  • Weatherproof: IP67
  • Dimensions: Φ 110 mm × 93.2 mm (Φ 4.33″ × 3.67″)
  • Weight: 400 g (0.88 lb)

Applications:

The Hikvision DS-2CD1323G2-LIU (2.8mm) Network Camera is ideal for a variety of applications, including home security, retail stores, offices, and other small to medium-sized business environments. Its advanced features ensure high-quality video monitoring and recording, even in challenging lighting conditions and outdoor environments.

This camera provides excellent performance with its 2 MP resolution, efficient video compression, and smart detection features, making it a reliable choice for any security system.
